High-Performance Mass Spectrometers

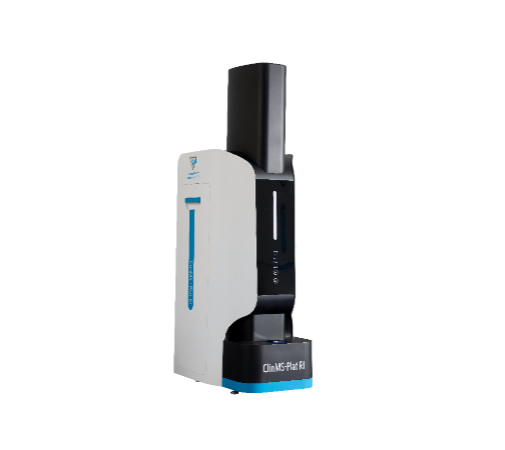

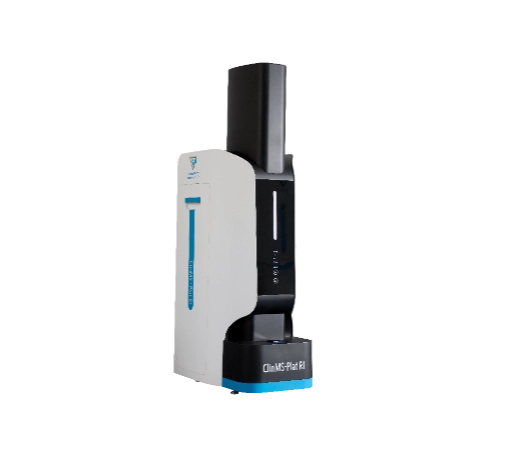

Reflectron High-Resolution MALDI-TOF Mass Spectrometer
ClinMS-Plat® RI Reflectron High-Resolution MALDI-TOF Mass Spectrometer is the first commercially available desktop reflective high-resolution MALDI-TOF mass spectrometer in China. Combined with its supporting micro-nano mass spectrometry chip and omics analysis software, it forms the first high-resolution reflective mass spectrometry platform in China for matrix-free metabolomics applications. This system is primarily used for the detection and analysis of small metabolites and lipid molecules. Offering high cost-effectiveness, ease of use, and high throughput, it is ideal for hospitals, research institutions, universities, and enterprises to quickly establish omics platforms and conduct large-scale clinical research.
Product Consultation
Compact structure: Desktop reflection high resolution mass spectrometer
Built-in oil-sealed rotary vane mechanical pump: Save experiment space for users
Excellent performance: Both dual ion detection mode, can accurately identify isotope interference, performance can be benchmarked against the international brand high resolution MALDI-TOF mass spectrometer, ensure data accuracy
Easy maintenance: modular assembly of the whole machine, domestic key parts, stable suppliers, can reduce maintenance costs

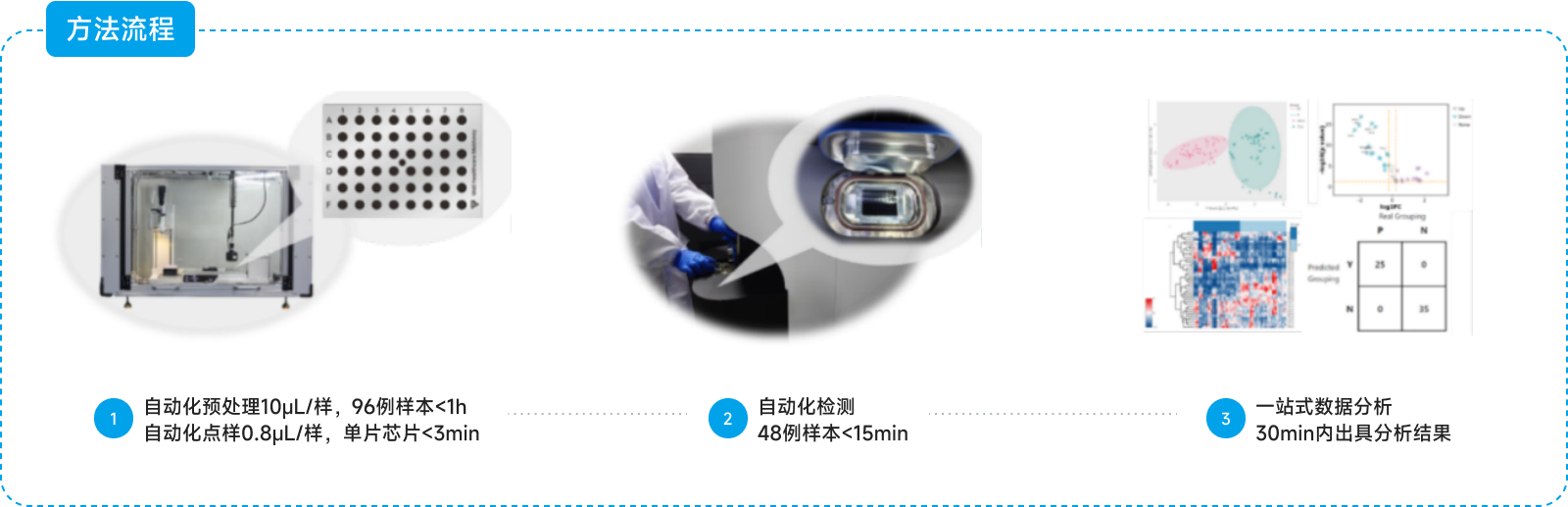

Fast analysis: Chinese and English interface, simple operation, the test time of 48 samples is 10-15 min, effectively improve the efficiency of the project
-Sample type: all kinds of tissues, body fluids, cells, etc., environmental, food, chemical samples
-Detection objects: metabolism, lipids, sugars, peptides, drug molecules, polymers, etc
-Applications: Study on metabolome and lipidomics of disease related to biological small molecules, marker mining and other chemical molecular detection
Mass Range
Sensitivity
Best Resolution
Quality Accuracy
Mass Accuracy
m/z 10-6000
1 fmol angiotensin II, S/N≥10
≥18000
<2 ppm (internal standard); <10 ppm (external script)
<20 ppm
